Item number: 160235
-
The machine is beautiful, smart, and has a high qualification rate. It is suitable for labeling and coding in cosmetics, beverages, medicine, food, general merchandise and other industries.
The design of the machine is novel and unique, and the operation and adjustment are very convenient. The operator only needs to place the bottle on the conveyor belt, when the bottle moves forward, the cursor will automatically label and mark the bottle after detecting it.
It can be used for both stand-alone production and online production.

Voltage: 110V/60Hz
Material: The surface is stainless steel

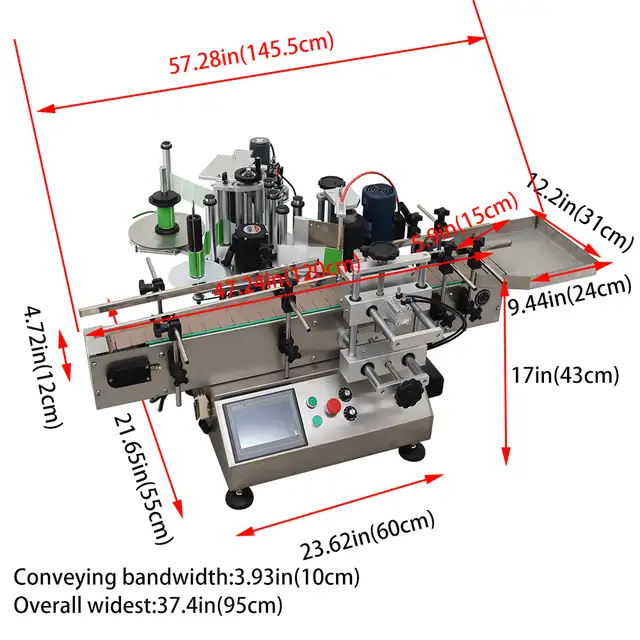

Conveyor width: 3.93in(10cm)
Conveyor belt length: 42.9IN(109CM)
Label inner diameter: 2.95in(7.5cm)
Label outer diameter: 9.45in(24cm)
Label out: Left bid
Output speed:

20-30PCS/min (Depending on the bottle size and label length)

Suitable bottle diameter: 0.78-4.72in(2-12cm)
Label height: 0.98-5.9in(2.5-15cm)
Label length: 0.98-13.78in(2.5-35cm)
Precision:
±0.039in (1mm)

Power: 800W
Package: Export wooden case

Feature
-Multi-rod spiral positioning prevents deviation and makes the sheet more accurate.
-Adding vertex style bottle holding labeling effectively solves the problem of bubbles during the product labeling process. The labeling is flat and wrinkle free, and can be applied.
-Spoke adjustment handle
Adjusting the two handles clockwise can move the spoke pressure plate forward and upward.
-The label object is sensitive to inspection, and the labeling efficiency is greatly improved.
-Photo-electric detection label, and the label will be released immediately when the bottle is detected to pass.
-This machine is equipped with a fiber optic amplifier, which can be adjusted by adjusting the fiber optic amplifier when the photosensitive eye cannot sense the product well.

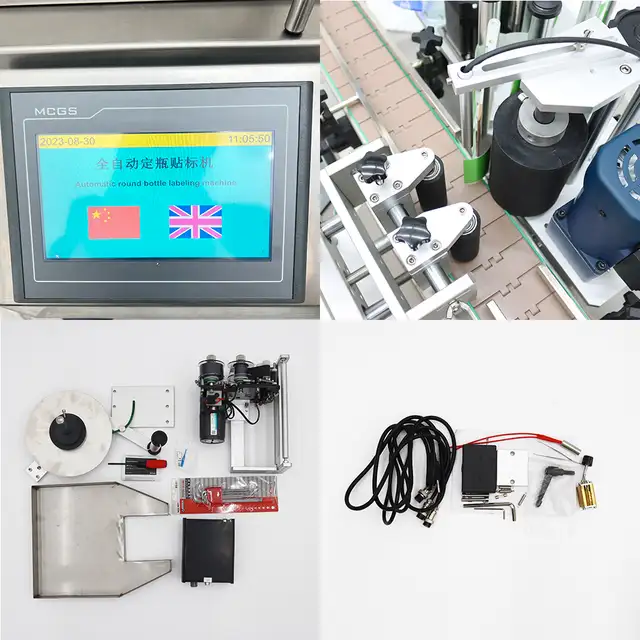

-This machine is equipped with a touch screen display, which allows customers to set relevant data according to their needs, making it more convenient and efficient.
-This machine is equipped with an emergency stop button, which can stop the operation of the machine with one click in case of any emergency, making it safer and more reliable.
-This machine is equipped with a high-quality conveyor belt motor, which is more durable.
-This machine is equipped with a chain plate conveyor belt, which is more wear-resistant and has a longer service life.
-This machine needs to be connected to an air compressor for use (we only provide the machine and do not provide an air compressor, which needs to be purchased by the customer)
-Print block
The word to be printed is placed in the word seat to realize the printing function.

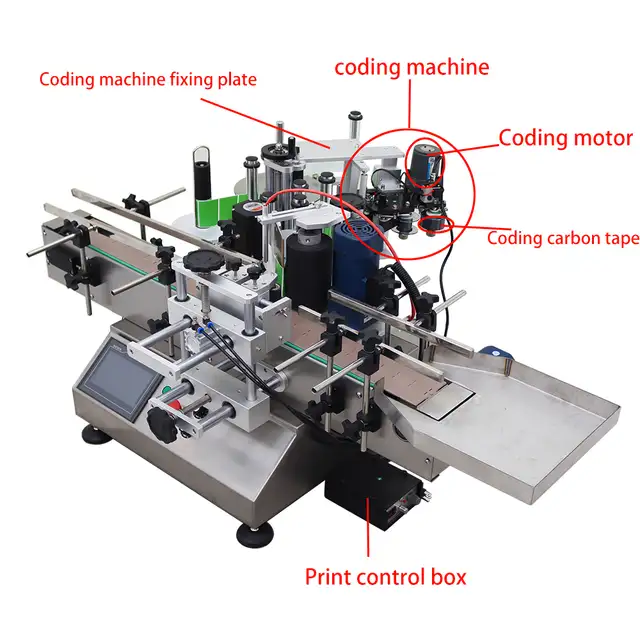

This machine is equipped with a coding machine, which can achieve coding function.

Product safety precautions:
To ensure safe production, please read the following precautions carefully:

1. Use the power supply that meets the requirements of the machine.

2. After turning off the power switch, there is still voltage in some circuits in the electrical control of the machine. When servicing the control circuit, be sure to unplug the power cord.

3. Do not touch the rollers with your hands during machine operation, and pay attention to personal safety.

4. When the machine has problems, press the emergency stop button directly to suspend all work.
5.Do not touch the photoelectric induction eye with your hands during machine operation to prevent the machine from missensing and mislabeling.

Advantages:
1. The machine is efficient and convenient to use;

2. The machine automatically labels, saving manpower and material resources;

3. This machine has wide applicability and stable performance;

4. This machine is equipped with intelligent touch control screen, which is more convenient to set data parameters;

5. This machine can meet the requirements of full-circle labeling or semi-circle labeling of round bottles. The labeling switching between bottles is simple, and the labeling is flat without wrinkles to improve the packaging quality.

6.This machine can be used with capping machine and bottle sorting machine.

7.The components of each adjustment position are precisely matched, and the height, width and width of the components can be easily adjusted without the use of professional tools. The machine operation is simple and simple.



Item Included: 160235

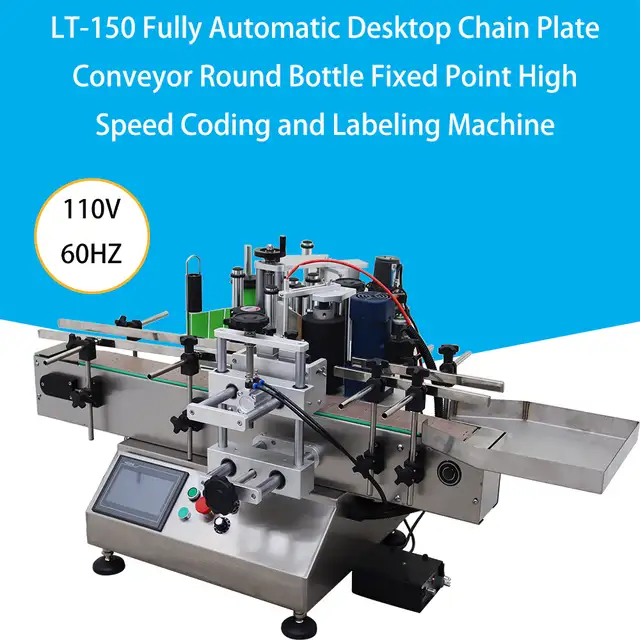

1*LT-150 Fully Automatic Desktop Chain Plate Conveyor Round Bottle Fixed Point High Speed Coding and Labeling Machine
