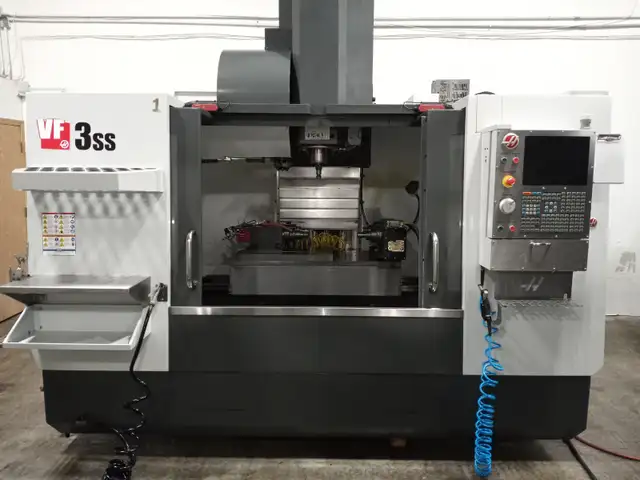

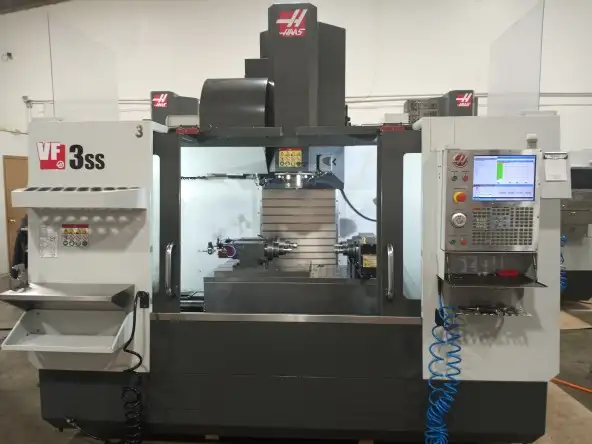

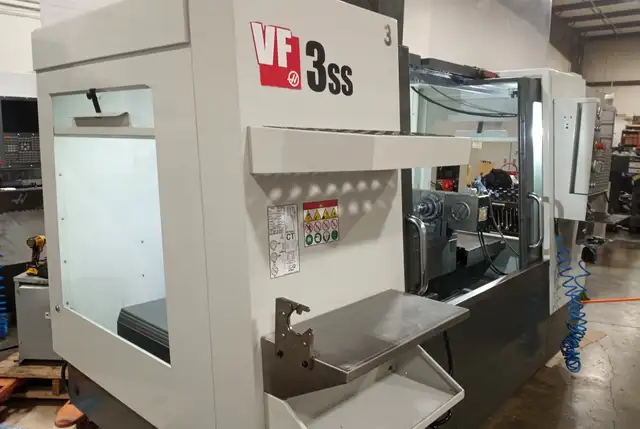

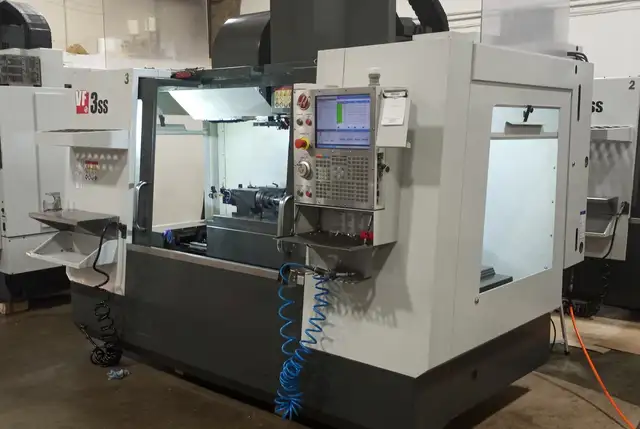

2016 Used HAAS VF3SS Vertical Machining Center
Stock in Edmonton
X Axis Travel: 40"
Y Axis Travel: 20"
Z Axis Travel: 20"
Rapid Rate X Axis: 1,400 IPM
Rapid Rate Y Axis: 1,400 IPM
Rapid Rate Z Axis: 1,400 IPM
Table Size: 48" x 18"
Max Table Load: 1,750 LBS
Spindle Motor: 30 HP
Spindle Speed: 15,000 RPM
Spindle Taper: 40 CT
Tool Changer: 24 ATC
Max Cutting 833 ipm
Max Weight 1500 lb
Max Thrust X 3085 lbf
Max Thrust Y 3085 lbf
Max Thrust Z 3923 lbf
Chip-to-Chip 3.6 s
Coolant Cap 55 gal
Power- 440 Amps 3 Phase 35A (High)
Dimensions: 131" x 92" x 101"
Weight: 11,720 LBS
Coolant Tank Length: 27.50" Width: 87.00" Height: 27.00" 200lbs
Options-
2016 HAAS VF3SS with 15,000 RPM CAT40 Spindle
High PSI Coolant Halo and Programmable Tool Directed

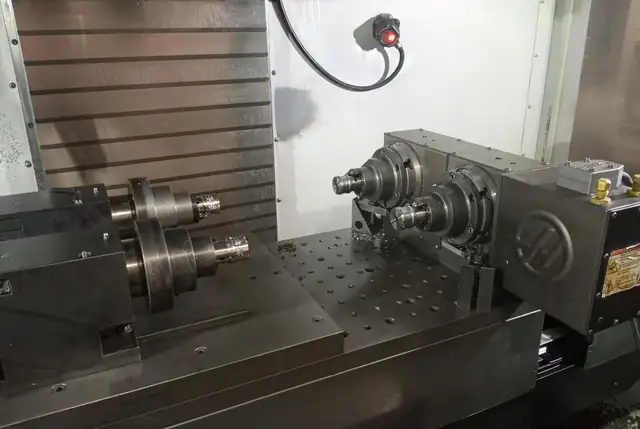

Dual Synchronized Rotary Axis 8" with pneumatic Tail Stocks Mounted on Sub Plate to table , collet chucks mtd face plate, replaceable to std chucks
Side shelves and Tool Storage Rack
Renishaw Probe Ready, Installed Receiver
Wash Gun and Air Gun
