Item number: 160410
-
https://youtu.be/3nQFtG-AZmU
The semi-automatic piston filling machine produced by our company has the advantages of simple and reasonable structure, high precision, convenient cleaning and simple operation. The contact area with the material is made of 304 stainless steel, in line with GMP requirements. The sealing parts are made of PTFE and silica gel. They have the advantages of corrosion resistance, aging resistance, high temperature resistance, good sealing and so on. They are ideal filling equipment for food, pharmaceutical, chemical, daily chemical, petroleum, pesticide and other industries.

This machine has two methods, foot switch filling and continuous automatic filling; the two filling methods can be switched arbitrarily. It is recommended to use the foot switch for filling at the beginning.

1.This product is designed for liquids , pasty fluid , oil , and thin food products. It can help you to fill a mount of quantitative liquids or pasty fluid.
2.The filling volume range is between 30ml - 300ml. And the machine should connect air compressor for working.First time when you use the machine , you should weigh the weight of output by adjusting and make sure the volume you want.

3.This series of models need to be equipped with external air compressor, air compressor exhaust should not be less than 0.1m3/min, equipped with pressure should be able to adjust to a range of 0.4-0.9Mpa.

4.For the materials with large filling viscosity and poor fluidity, which need heating or pressure or mixing filling, please consult us to recommend purchasing the mixing model, heating model and heating mixing machine.

(Note1:We only sell machines, do not match air compressors, customers need to buy their own.)
(Note2: If you are not sure whether the material can be filled with this machine, please consult before placing an order)

Parameters:
1.Voltage: 110V/60Hz
2.The surface is stainless steel
3.Pneumatic
4.Filling volume (ml): 30-300
5.Filling accuracy (FS): ±0.5%
6.Production capacity (cycle/min): 1-25
7.Applicable tolerance (m³/min): ≥0.1
8.Exterior sizes (mm):

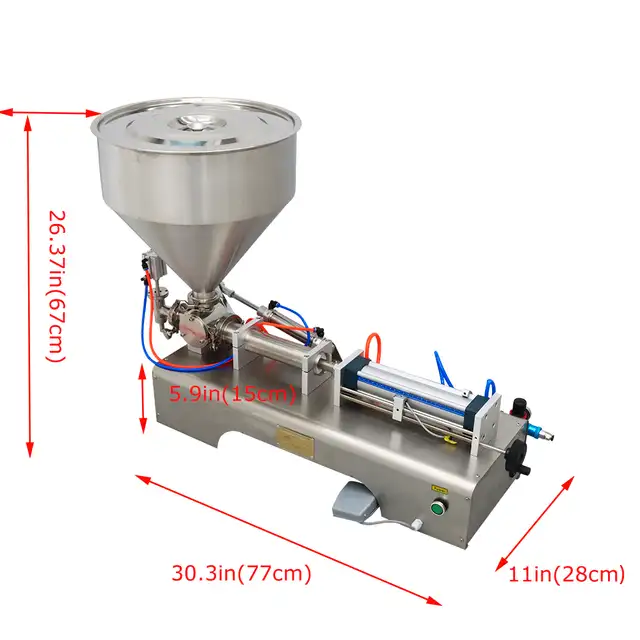

9.Product size: 30.3*11*26.37in(77*28*67cm)
10.Net weight (kg):23.5kg (51.8lb)
11.Applicable pressure (Mpa): 0.4-0.9

Noted:
This machine is suitable for materials with poor fluidity, such as water, shampoo, toothpaste, honey, cream, lotion, butter, ice cream and so on.
Clockwise downward, the discharge speed becomes slower;
Counterclockwise upward, the discharge speed becomes faster.

Item included: 160410
1x Filling Machine
1x Piezometer
1x Funnel
1x Pipe
1x Specification
1x Screw Driver
1x A set of hex socket screws
The following are giveaways:
3x Spacer Sheet
2x Sealing ring
1x Power Cord
2x Spare regulating valve (One big and one small)

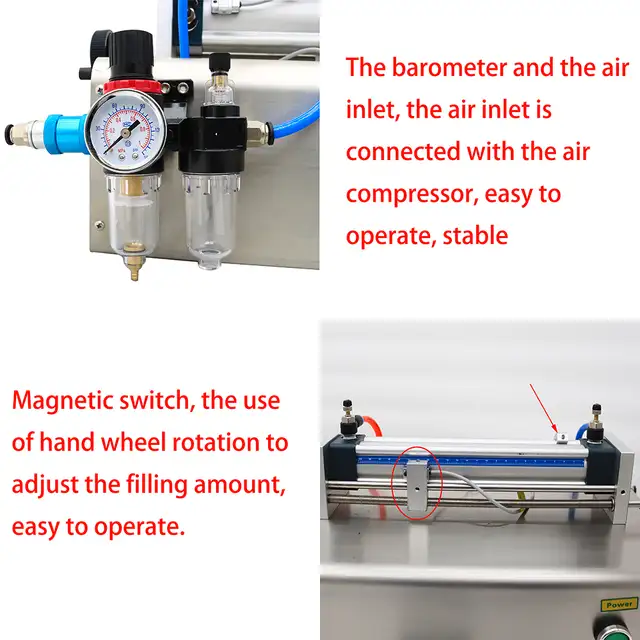

1x Magnetic switch
