Item number: 056599
-
Product Overview:
This product is based on servo motor as power electric tapping machine, widely used in all walks of life all kinds of large and small machine and all kinds of materials, parts of molds and wood tap wire processing, the product is well-made, quality first-class, was deeply loved by the masses of customers and praise, are you tapping processing of choice.

Product parameter:
Bearing scope of thread: 1/8"-11/4"
Voltage: AC220V 50/60Hz
Motor Power: 2000W(2.7HP)
Chuck type: TC820

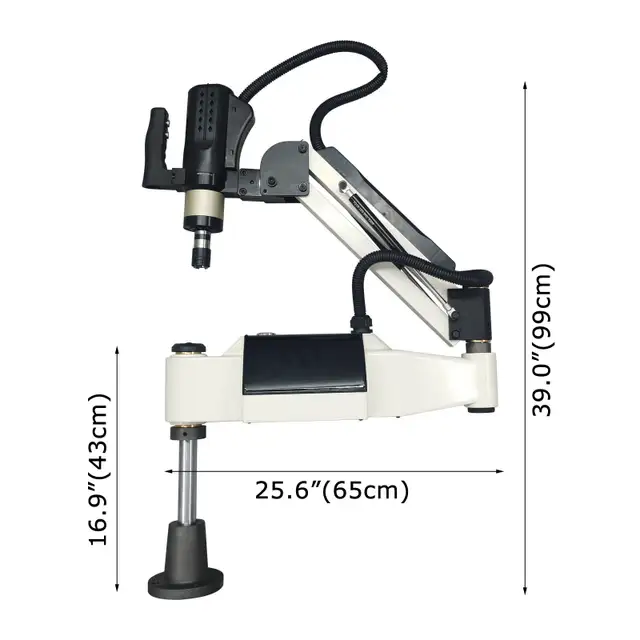

Working area: Horizontal:47.24"(1.2m)
Vertical: 19.68 "(0.5 m)
Spindle speed: 1-156rpm
Working angle: 360° universal
Maximum torque: 256N.m
Color: White
Packing size: 34.6"*31.1"*9.8"(88cm*79cm*25cm)
Net weight/Gross weight: 90.4LB(41kg)/119.0LB(54kg)

Product Features & Advantages:

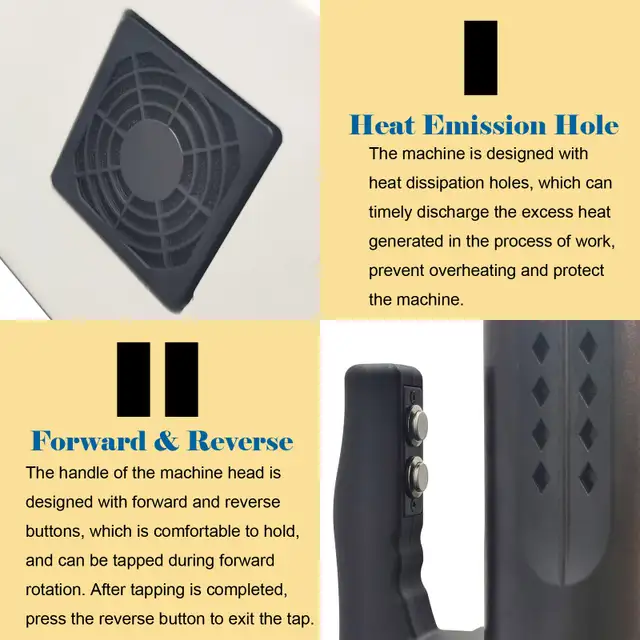

1.Heat Emission Hole
The machine is designed with heat dissipation holes, which can timely discharge the excess heat generated in the pricess of the work, prevent overheating and protect the machine.
2.Fordward & Reverse
The handle of the machine head is designed with forward and reserve buttons, which is comfortable to hold, and can be tapped during forward rotation. After tapping is completed, press the reverse button to exit the tap.

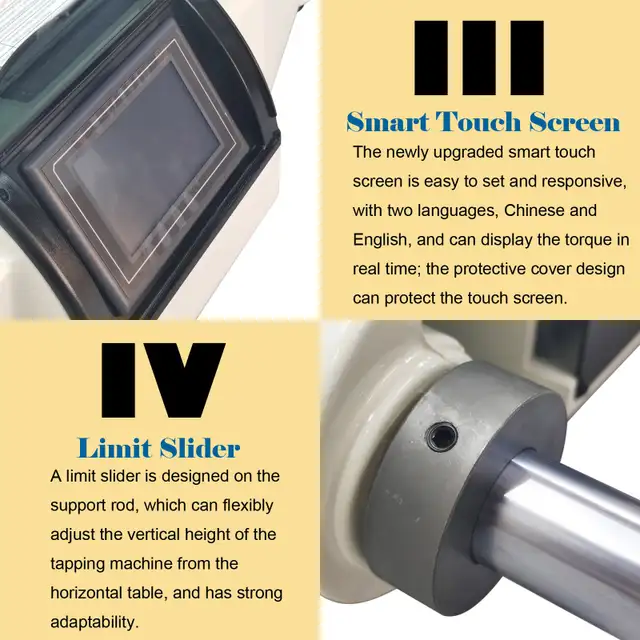

3.Smart Touch Screen
The newly upgraded smart touch screen is easy to set and responsive, with two lanuages,Chinese and English, and can display the torque in the real time; the protective cover design can protect the touch screen.
4.Limit Slider
A limit slider is designed on the support rod, which can flexibly adjust the vertical height of the tapping machne from the horizontal table, and has strong adaptability.

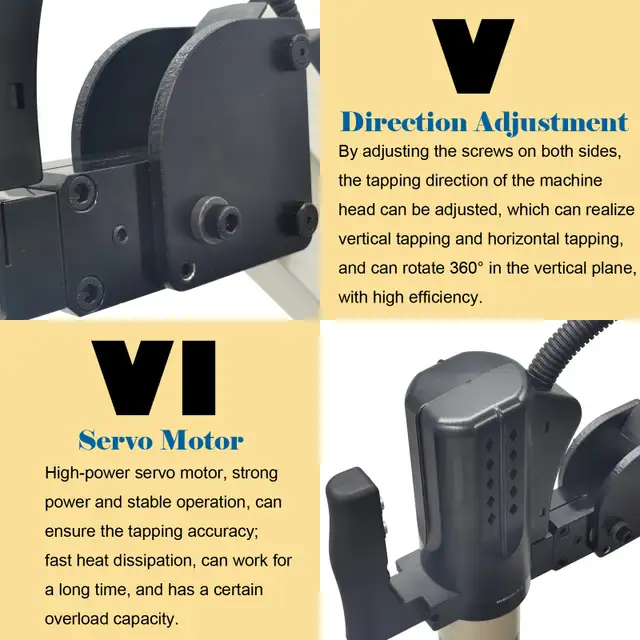

5.Direction Adjustment
By adjusting the screws on both sides, the tapping direction of the machine head can be adjusted, which can realize vertical tapping and horizontal tapping, and can rotate 360°in the vertical plane, with high efficiency.
6.Servo Motor
Hogh-power servo motor, strong power and stable operation, can ensure the tapping accuracy; fast heat dissipation, can work for a long time, and has a certain overload capacity.

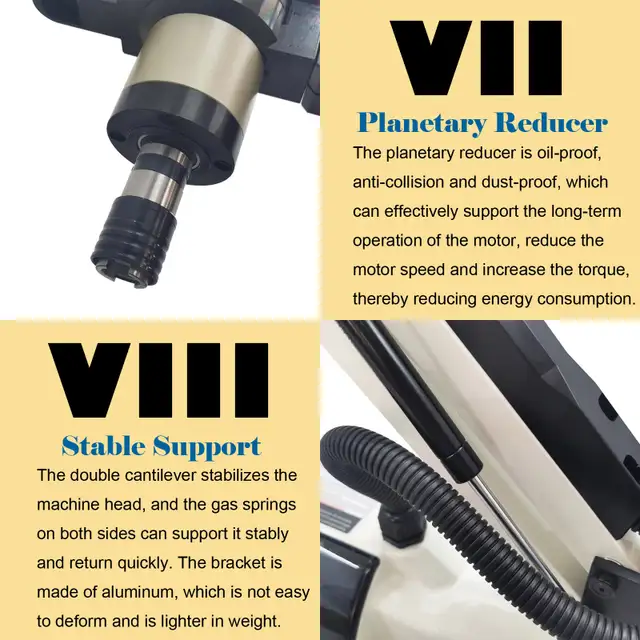

7.Planetary Reducer
The planetary reducer is oil-proof, anti-collision and dust-proof, which can effectively support the long-term operation of the motor, reduce the motow speed and increase the torque, thereby reducing energy consumption.
8.Stable Support
The double cantilever stabilizes the machine head, and the gas springs on both sides can support it stably and return quickly. The bracket is made of aluminum, which is not easy to deform and is lighter in weight.

- There are three modes for you to choose: manual, automatic and deep hole machining.

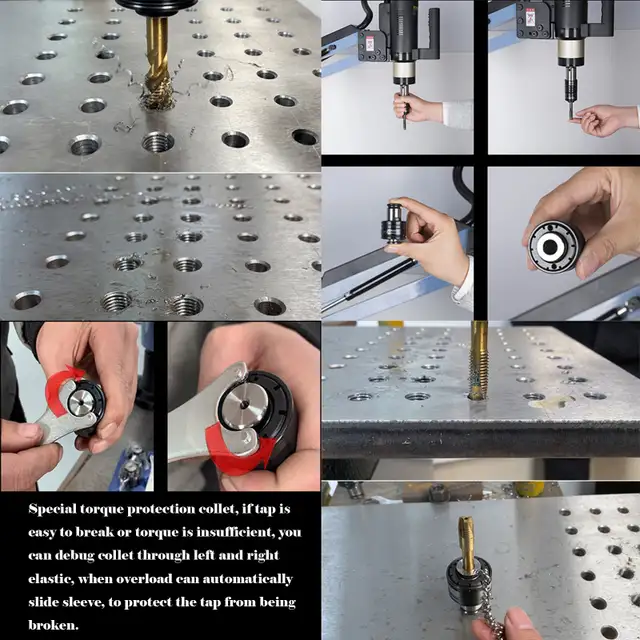

- The preset torque of the machine plus the double protection of the torque chuck can prevent the tap from breaking.
- Newly upgraded 2000W high power, can bring more torque.
- The rotating parts are made of graphite copper sleeves and bearings, which are flexible in rotation, more wear-resistant, and have high tapping accuracy.
- Wide range of processing materials, can process aluminum, copper, A3 steel, 45 steel, cast iron, pig iron, Q235, S136, mold steel, 718H,40Cr, stainless steel and other materials.

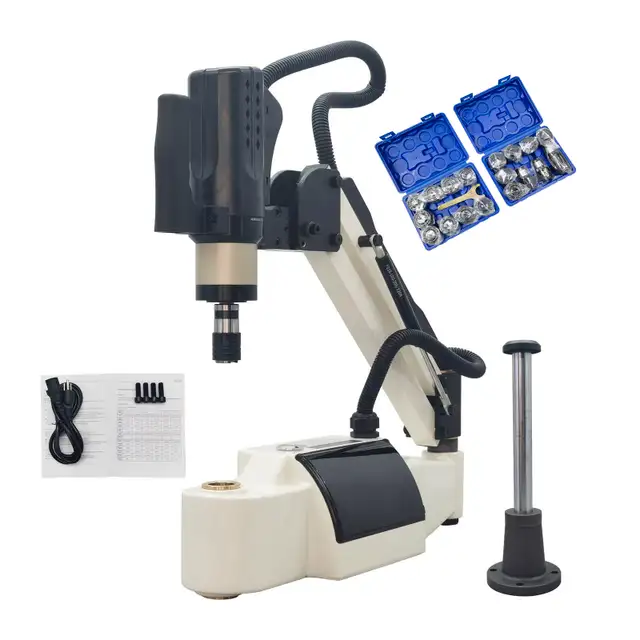

Item include: 056599
Tapping machine *1
Support bar *1

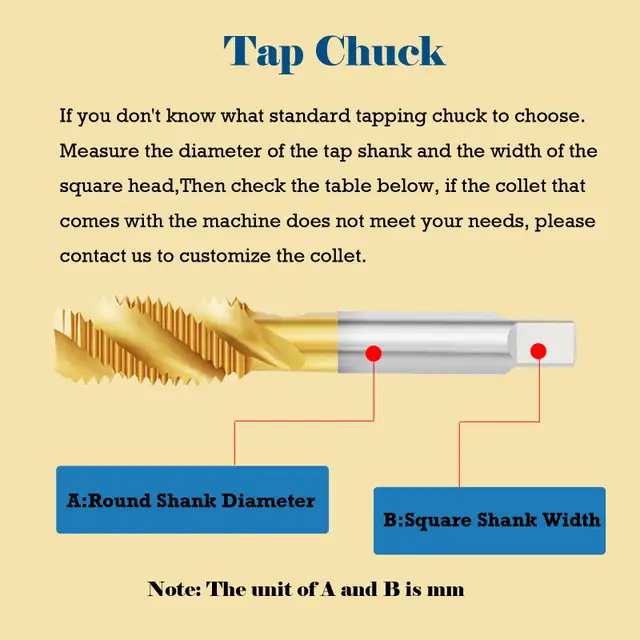

Inch tap chuck *18
Collet wrench *1
Fixing screw *4
English manual *1
