Item NO.#151005
Description

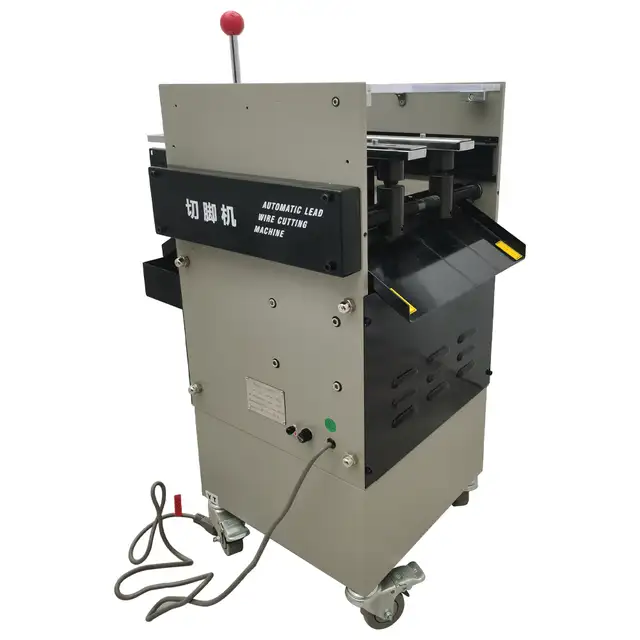

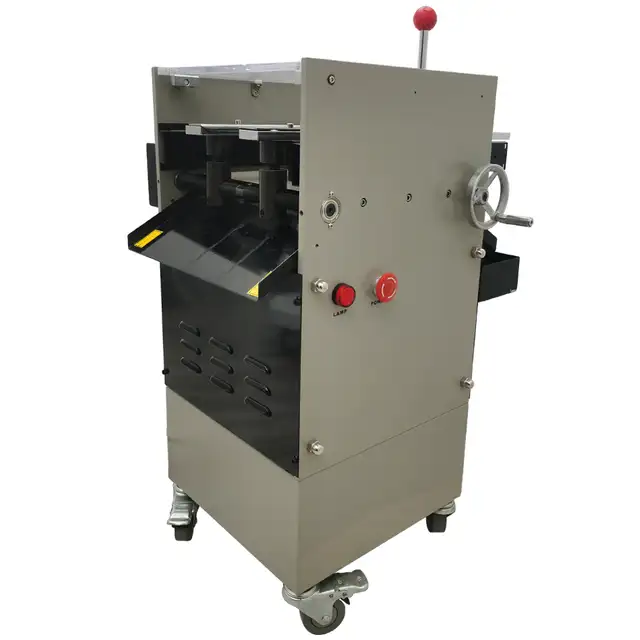

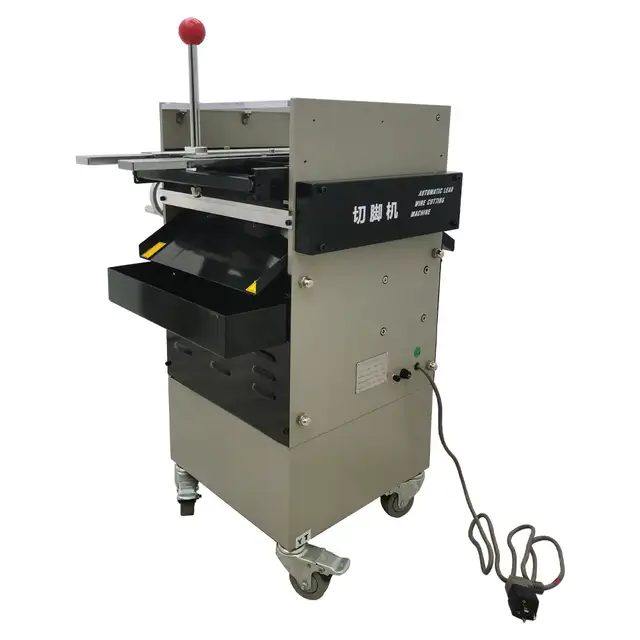

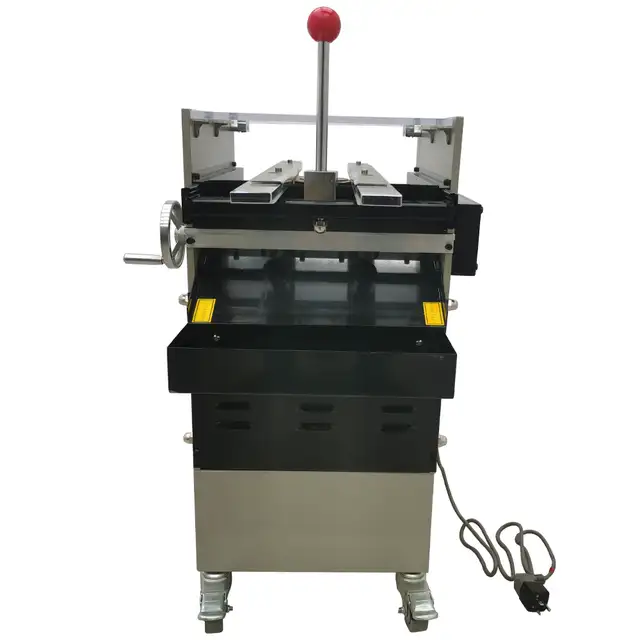

The breadboard wipe cutting machine is mainly applied in cutting the unwanted pin after the welding of parts of apparatus and this machine is assembled by parts made with exquisite craftwork. The key parts are dealt with grinding , and the imported bearing assembled wipe cutting machine grinding consistency is excellent, the rotating   speed of blade is fast and is very efficient and convenient to operate with little noise. The double lead rail is adjusted synchronously , the height of wipe cutting is adjustable and the outlook is attractive. “Continuous improvement, lasting and efficient, clients first” is our quality tenet, it is our honor to serve you.
-
Parameter
Model: 200E
Base plate thickness: approx0.8-2.5mm/approx0.03-0.1inch
Blases turning speed: 4500r/min
Rail travel: 0-200mm/0-7.87inch
Blade size: Φ200*70*3.5mm/Φ7.87*2.76*0.14inch
Rated power: 550W
Power supply: AC220V±10%; 50Hz
Weight: 80kg
Dimension: 615*415*780mm/24.21*16.34*30.71inch
-
Features
1.Blade jitter small; Pin cutting leveling

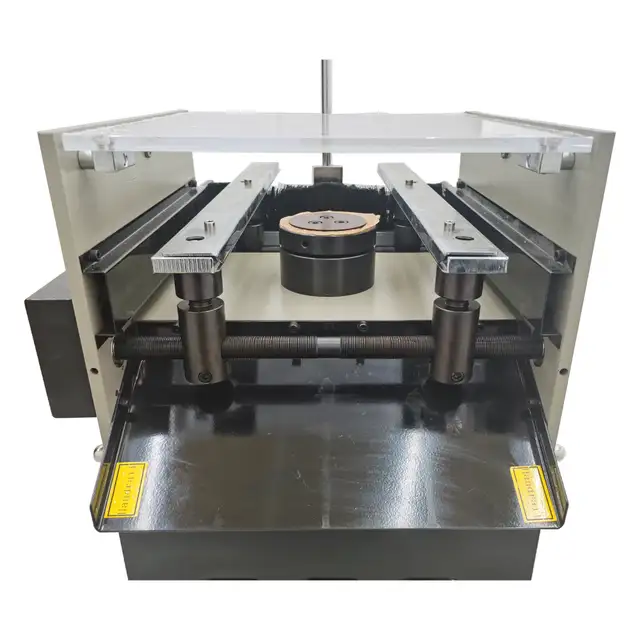

2.The 3 hole blade gland uses the triangle positioning principle, the blade is firmly fixed, not easy to loose, the high speed running condition, the blade does not slip, the operation is smooth, the cutting foot is accurate, the safety factor is high.
3.The whole machine is steady, low noise and low jitter.
4.The feeding guide rail of the fine steel is of high thickness, wear resistance, not easy to deform and prolong the service life of the machine.
5.Line type cutting.
-
Operations
1.Place the welded breadboard on the adjusted wipe cutting machine and insert the lead rail down the leading-in of lead rail.

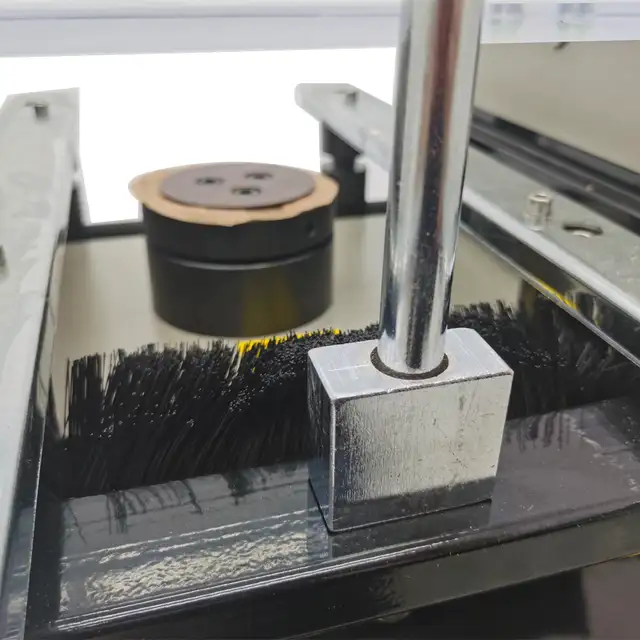

2.Push dexter feed hand shank and push placode advance at constant speed
3.Repeat step 1,2 and finish cutting the welded placode.
Notice: When the placode moves avoid moving too fast, and moving too fast can directly shorten the use life of blade and even endanger safety.
-
Maintenance
Wipe cutting machine is the mechanic equipment of high accuracy and with high speed and the constant maintenance prolongs its use life
1.The rotating part needs constant lubrication.
2.Clean up the cut pin
3.If the transmitting triangle strap is damaged, it needs immediate replacement and the specification is (0-450)
4.The blade should not leave cutter head for too long, lubricate the cutter head when necessary if it leaves for several days.
-
Notice
1.When the machine is in operation avoid putting hands into the machine.
2. This machine must work in the state of good earth connection
3.Cut off the power when installing or dismantling blade or in case of emergency
4.Cut off the power in sace of a blackout.
5.This machine should not be used in humid, flammable, corrosive, dense bug dust-filled environment.
6. Non professional repairmen are not allowed to dismantle the cover to repair it personally .
7.Do not open the cover when the machine rotates.
8.Operate the machine according to instruction strictly; otherwise out factory takes no responsibility.
-
Item Include(151005)

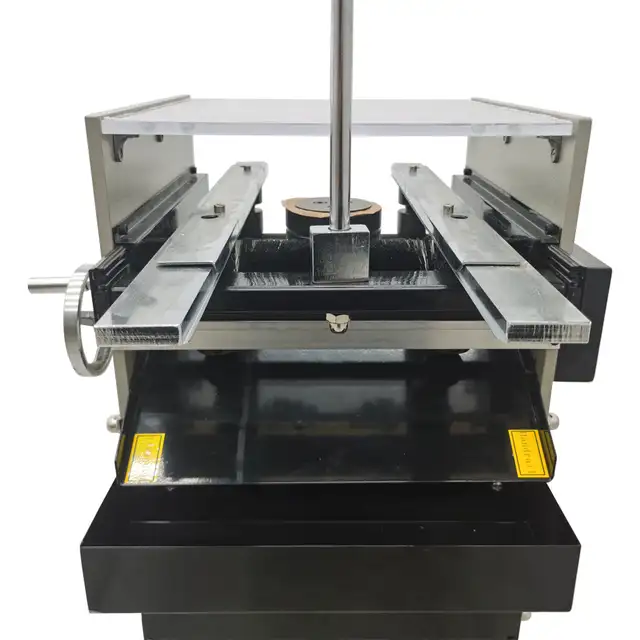

A set of 220V Semi automatic PCB foot cutting machine
A set of Blade

Notice
1.Limited stock, please purchase ASAP if you want it.
2.Before pickup, please call us to make sure.
3.The price will be adjusted when there's large fluctuations in exchange rates and raw material costs.
4.Advertising price does not include the tax.
-
