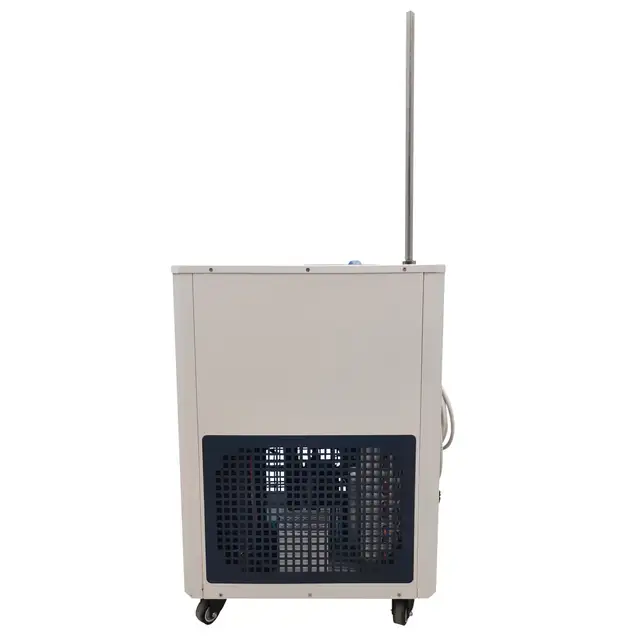

Low temperature coolant circulation pump is a piece of low-temperature liquid circulation equipment that adopts mechanical refrigeration, and has the function of providing low-temperature liquid and low-temperature water bath. Rotary evaporators, vacuum freeze-drying boxes, circulating water vacuum pumps, magnetic stirrers and other instruments are combined to conduct multifunctional chemical reaction operations and drug storage at low temperatures.
Parameters
Storage capacity: 5L
Minimum no-load temperature: -40 ℃
Flow rate: 35L/min
Lift: 4-6 meters
Constant temperature accuracy: ± 2 ℃
Power supply: 110V60Hz
Power: 630W
Working humidity: 60-80% ventilation

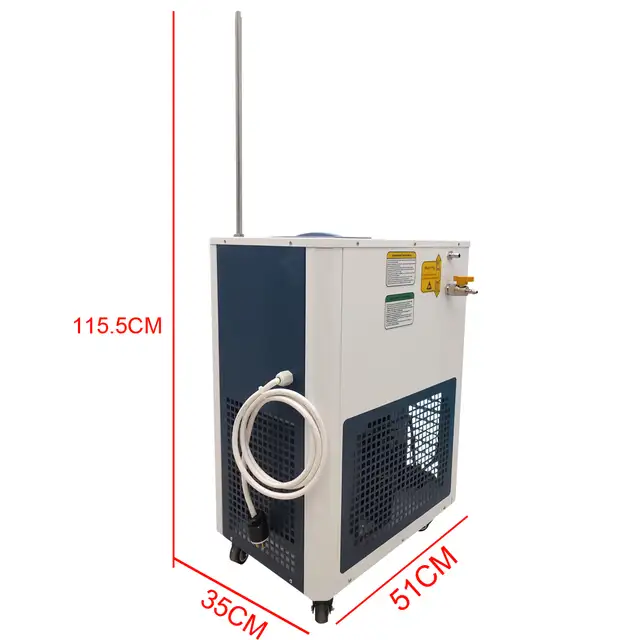

External dimensions: 51 * 35 * 115.5cm
Pipe length: 2M*2
Product features

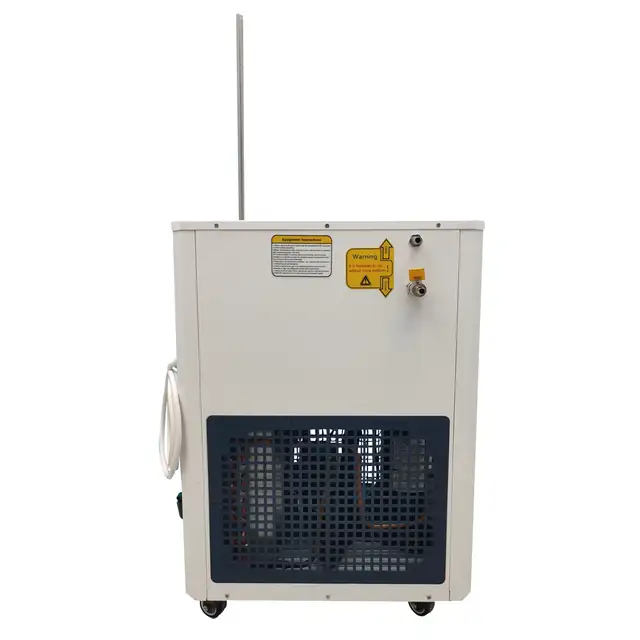

1. Large area heat dissipation window effectively protects the operation of the compressor and the compressor can work for a long time.

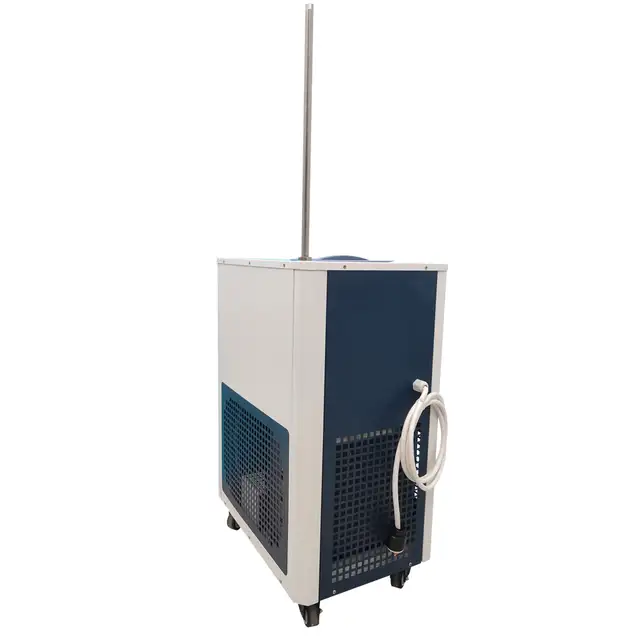

2. Universal wheel design, not limited by site, can move freely.

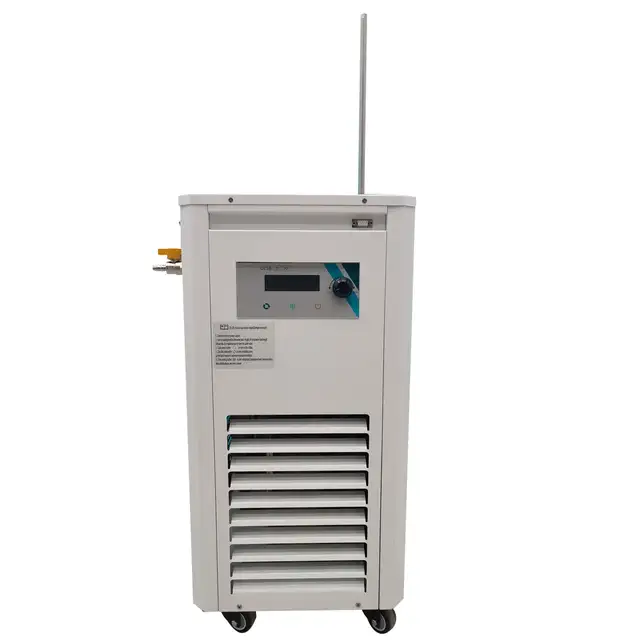

3. Control panel: PID intelligent temperature control module, LCD digital display.

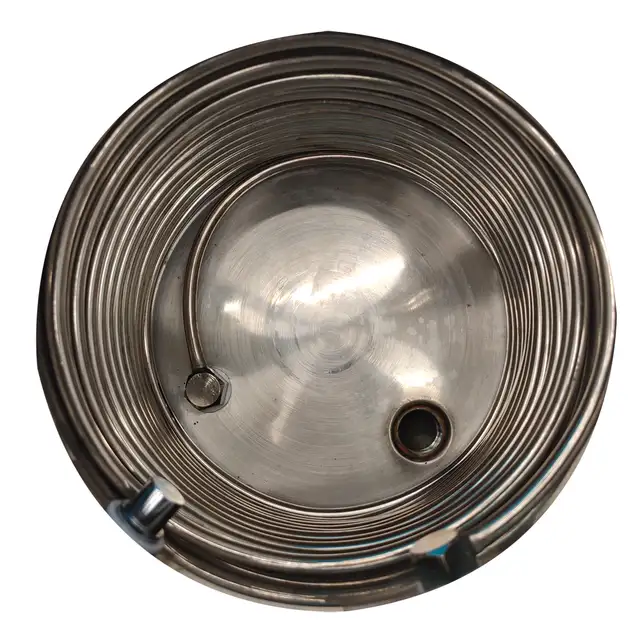

4. The spiral design refrigerant circulation pipe has a large contact area and high work efficiency.
5.304 stainless steel, electrostatic spraying, rust and corrosion resistance.
Precautions for use

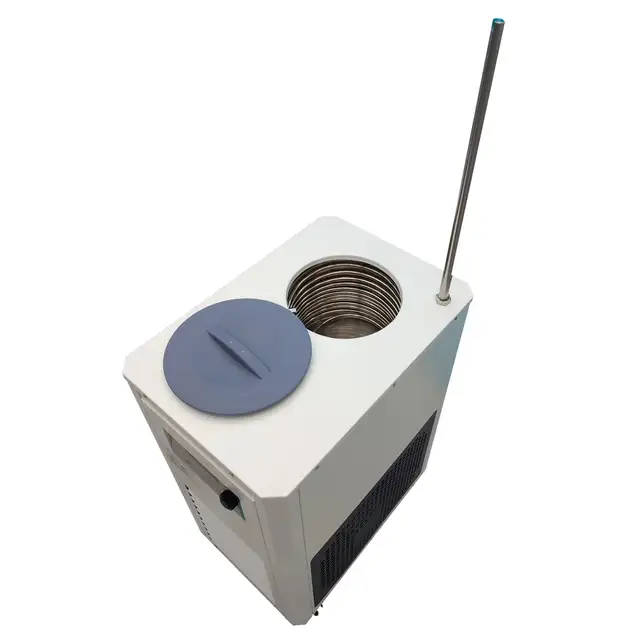

Before using the low-temperature coolant circulation pump, liquid medium (ethanol is recommended) should be added to the tank. The liquid level of the medium should not exceed the cooling coil in the tank and should be 20mm lower than the workbench.
2. Prevent acidic or alkaline substances from entering the tank to corrode the coil and inner liner.
3. The instrument should be placed in a dry and ventilated places without obstacles within 300mm around the instrument;
4. Regularly observe the liquid level in the tank. When the liquid level is too low, liquid medium should be added timely.
5. When the working temperature of the low-temperature coolant circulation pump is low, it should be noted that the upper cover should not be opened, and hands should not enter the tank to prevent frostbite;
6. After use, all switches should be turned off and the power should be disconnected;
7. When the liquid circulates externally, customers should pay special attention to the firmness of the connection of the outlet pipe to prevent detachment and prevent liquid leakage.
8. The instrument should be regularly cleaned and should not be used for a long time. The medium in the slot should be discharged and wiped away to keep the workbench and the operating panel clean.

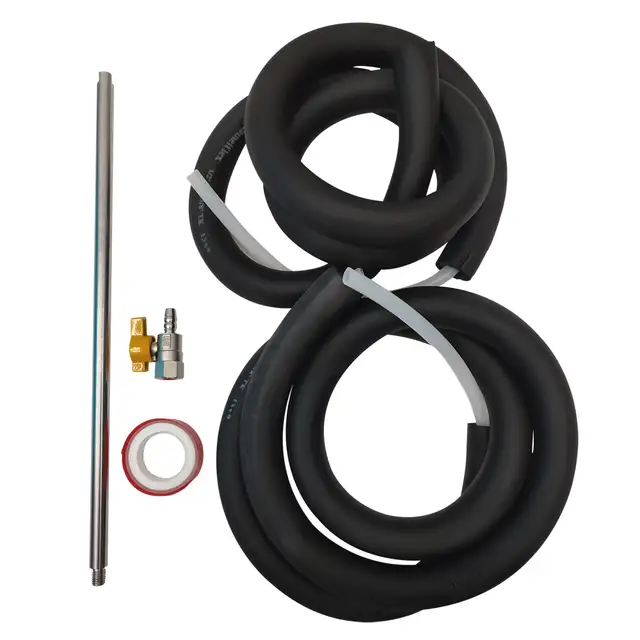

Packaging List
Low temperature coolant circulation pump * 1
Stainless steel bracket * 1
Water pipe * 2
Faucet * 1
Sealing tape * 1

Item Number: 220631
