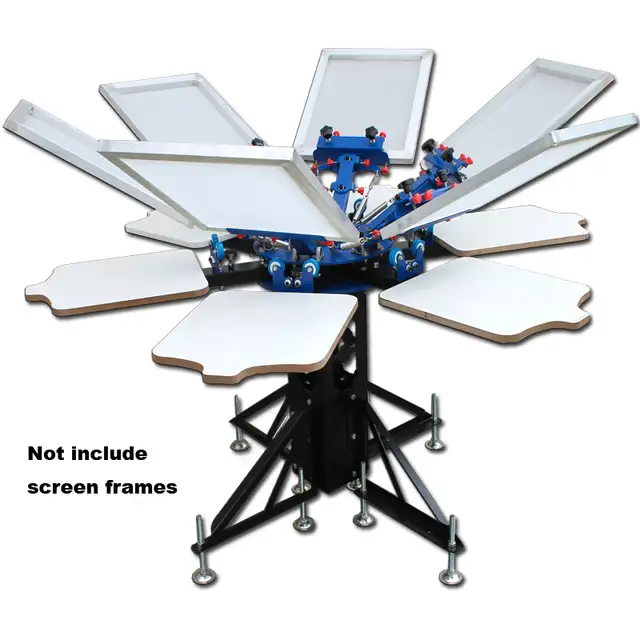

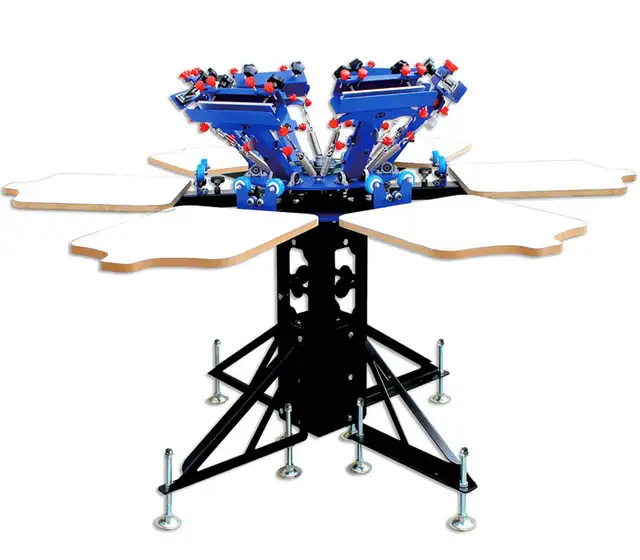

The 6-color 6-station screen press can apply 6 screens to 6 stations simultaneously. The screen layer and the pallet layer can rotate independently, so that it is easier for multi-color printing, material loading and unloading, and the much wider application range and the faster printing effect will be achieved finally.

New function

Compared with the original 6-color 6-station printer, this new type machine has a function of micro-adjustment/registration.

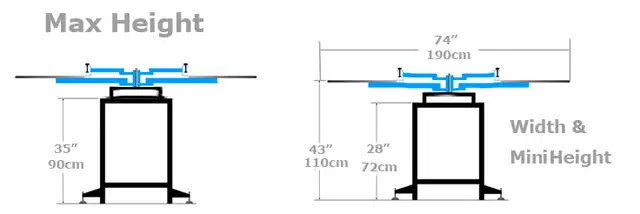

The height of the new metal stand design can be adjusted to be 28''-35''.If you want to do precise color matching, you can use those small red handles to move the screen frame right or left slightly. It will be a good choice for colorful printing.

Applications You can print clothing (especially T-shirts), woven fabric, metal, paper, copybooks, plastic, circuit boards, wood, glass, ceramic tiles, leather and other plane printing substrates, and the machine is especially suitable for small businesses and individual printing shops.

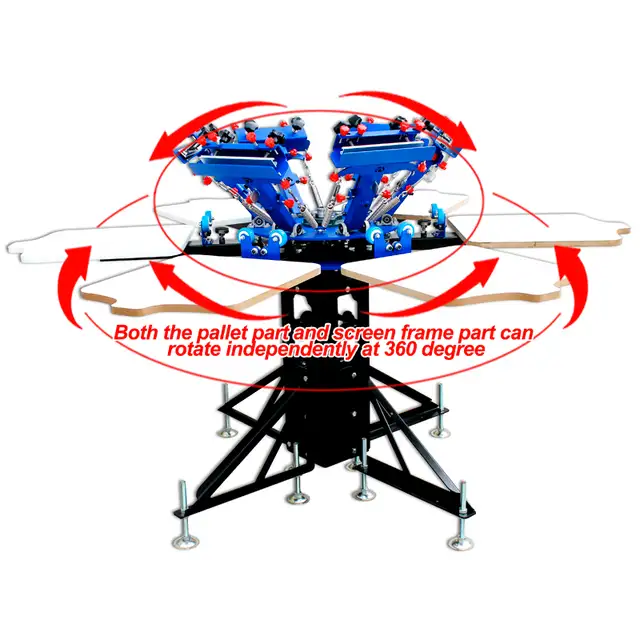

The frames & the pallets can simultaneously rotate by 360 degrees at will.

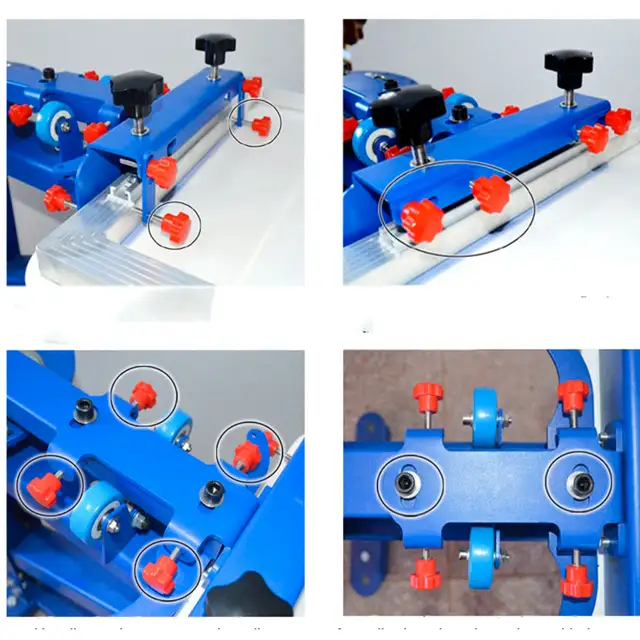

Red Handles on the printer holder are used to Adjust the Screen Printing Frame and move the printer arm right & left slightly.

Features

Table type and combination design saves place and is convenient for transportation.

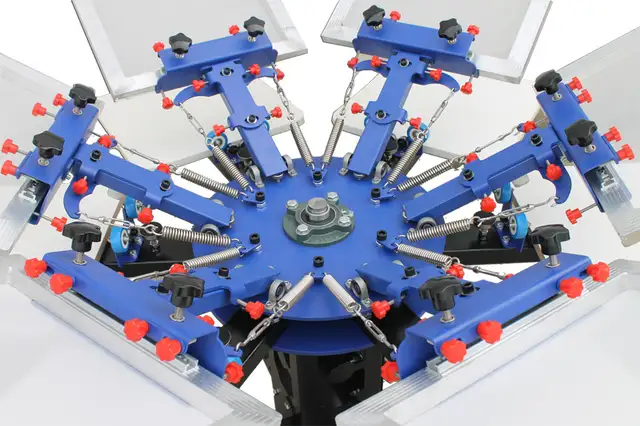

Adjustable double-spring devices are available for screen frames of different weight.

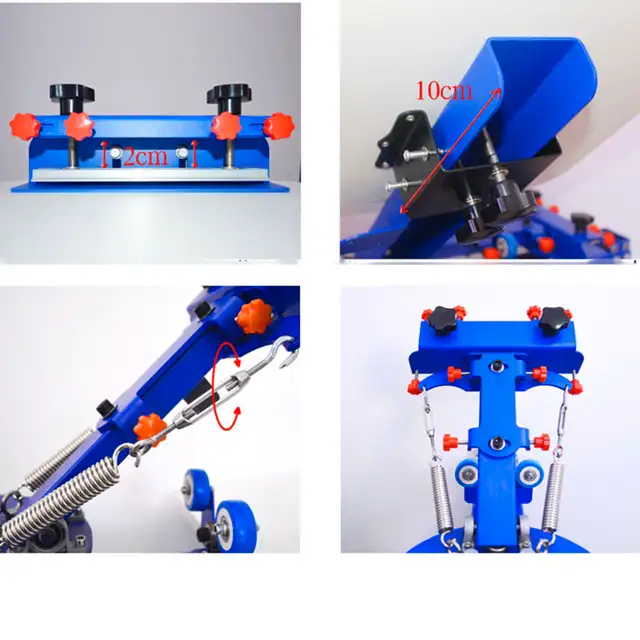

Screen clamp can be moved up and down, which is suitable for screen frame within 1.2" (3cm) thickness.

Big supporting device keeps the machine stable and balanced.

All-metal construction, advanced electrostatic spraying and electroplating, durable, easy to clean and no rust.


Parameters:
Platen size:45*55cm(18*22inch)
Machine size: 190*190*110cm/74*74*43inch
Net weight:152kg/334lb
Gross weight: 162kg/335lb

Item Include: 006527
1 set 6-color 6-station screen printer
