Item number: 056085
-
Product Overview

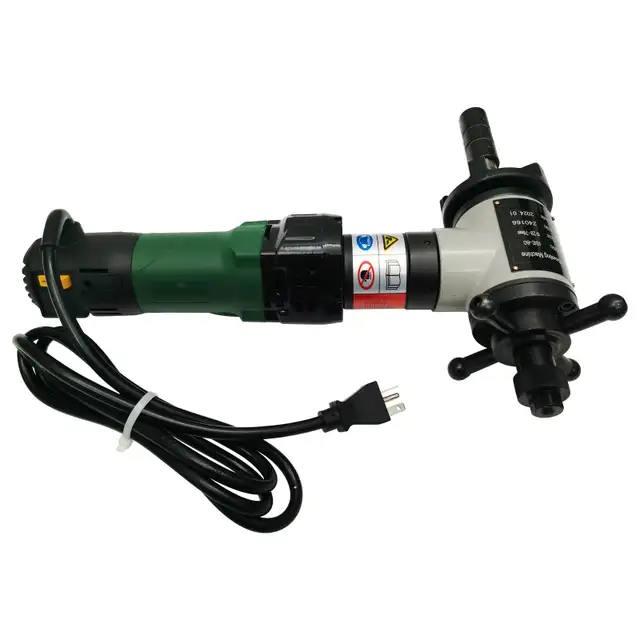

ISE series pipe cutting groove machine is a portable cutting chamfering machine equipment, has a relatively light weight, small radial space, easy to use, simple maintenance and so on, can be convenient and quick installation in complex series pipe cutting and groove on, are widely used in the need to pipe processing industry, the operation is simple, easy to carry, stable and reliable, and was deeply loved by the masses of customers.

Product Parameters
Model: ISE-80
Voltage: AC220V
Power: 1200W
Working current: 6A
Inner diameter of machining pipe: 1.1"-3.0" (28mm-76mm)
The bevel Angle: 0°/30°/37.5° (Comes with 0°, 30°, 37.5°three tool bit) The bevel Angle: 0°/30°/37.5°
Cutting thickness: ≤0.59" (15mm)
Rotation speed: 55 r/min
Packing size: 23.6"*17.3"*7.1" (60cm*44cm*18cm)
Net weight/Gross weight: 28LB(12.8kg) / 31LB(14.2kg)
Note: If you need tool bit from other angles, you can contact us to customize.

Product Features & Advantages
1.Cold Working:
The cold cutting processing method, fast speed, does not change the metallography, smooth processing surface, can be directly used for welding. With a variety of tensioning blocks, adapt to different pipe diameters; Adjustable tool holder, according to different pipe diameters and cutting needs, can freely adjust the installation position of the tool.
2.Hand Wheel:
The tensioning hand wheel can make the tensioning block tension the pipe quickly and effectively, and the machine can automatically locate the center of the pipe with one adjustment.
3.Motor:
One-key switch start, easy to operate, easy to use; Adopts pure copper core motor, strong power, strong performance, low noise, high intensity heat dissipation, protect the long-term operation of the groove machine.
4.High Quality:
The main machine is made of high quality material, strong and reliable, not easy to deform, light weight, easy to operate and high applicability.
5.Easy to Carry:
A portable case is included for easy handling and storage; Light weight, can be carried, not limited by the construction site, more convenient to use.
6. Plug:
The beveling machine is equipped with 220V American gauge plug, which can be used directly without a converter; Connect wires for safer use.
- The inner diameter of the groove machine inserted into the pipe can be automatically positioned and aligned to the center, easy to install and fast.
- Chamfering machine is light in weight, easy to carry and efficient.

- Bevel quality is good, speed is fast, operation is simple, cutting quantity can be fine-tuned, bevel Angle can be adjusted from 0° to 37.5°.

- Beveling machine can not only process U and V shaped welding seams of carbon steel, stainless steel, alloy steel and other materials, but also process the convex surface of the welded flange.

- With high-quality cutting head, bevel processing can be completed at one time, and the bevel is smooth after processing.

Item Included(056085)
Pipe beveling machine * 1 Tool bit * 3 Fork wrench * 1
Inner hexagon wrench * 2 The screwdriver * 1 Spring coil * 2
English instruction manual * 1 Screw * 6 Spring coil * 2
