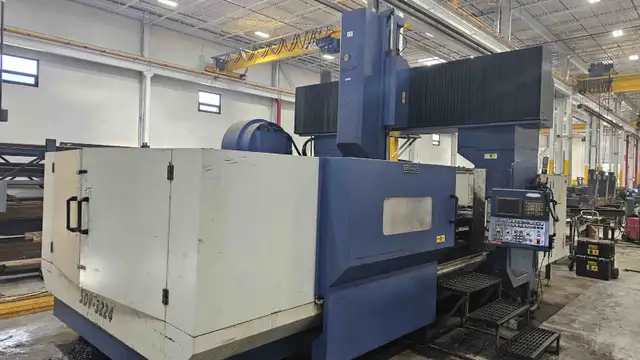

Here Is A Nu-Way Sigma SDV-3224 CNC Gantry Mill We Have In Stock,
If You Require Anymore Photo`s & Info Please Call Or E-mail Us.

Specifications:

Model - SDV-3224
Year - 04/2005
Table Size - 118” x 86”
X Axis Travel - 125.98”
Y Axis Travel - 94.48”
Z Axis Travel - 29.92”
Distance Between The Column - 98.42”
Automatic Tool Changer - 20
Spindle Taper - CAT 50
Max Spindle Speed - 4,000 RPM
Max Work Piece Weight - 22,000 Lbs
Rapid Traverse (X/Y/Z) - 472 IPM
Control - Fanuc
Main Motor - 35 HP
Electrics - 575V/3PH/50HZ
Made In - Taiwan
Approximate Weight - 72,000 LBS
Approximate Overall Dimension - 386”L x 216”W x 166”H

Equipped With:

Fanuc Series 18i-MB CNC Control
20 Automatic Tool Changer
Spindle Oil Cooler Unit
Double Chip Augers
RS-232 Interface
Hand Pendant
Coolant System
Lubrication System
Full Guarding

Avo's Machinery Equipment Inc.
(905)738-7958 PH
(416)816-3054 CELL
(416)844-8547 CELL
avosmachinery@rogers.com
www.avosmachinery.com

Thank You, Hope To Hear From You Soon.

Best Regards,
Greg/Avo/Albena
