Item number: 056222
-
Product Overview

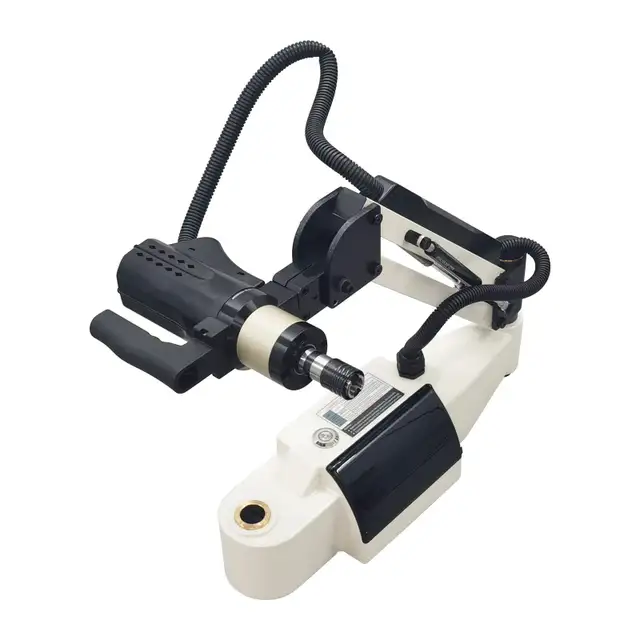

This product is based on servo motor as power electric tapping machine, widely used in all walks of life all kinds of large and small machine and all kinds of materials, parts of molds and wood tap wire processing, the product is well-made, quality first-class, was deeply loved by the masses of customers and praise, are you tapping processing of choice.

Product Parameters
Bearing scope of thread: M3-M16
Voltage: AC220V 50/60Hz
Motor Power: 600W(0.8HP)
Chuck type: GT12
Working area: Horizontal:43.3"(1.1m)
Vertical: 21.6 "(0.55 m)
Spindle speed: 1-312rpm
Working angle: 360° universal
Maximum torque: 256N.m
Color: White
Packing size: 29.1"*28.3"*11.0"(74cm*72cm*28cm)
Net weight/Gross weight: 50.7LB(23kg)/70.5LB(32kg)


Product Features & Advantages
- There are three modes for you to choose: manual, automatic and deep hole machining.
- The preset torque of the machine plus the double protection of the torque chuck can prevent the tap from breaking.
- Newly upgraded 600W high power, can bring more torque.
- The rotating parts are made of graphite copper sleeves and bearings, which are flexible in rotation, more wear-resistant, and have high tapping accuracy.
- Wide range of processing materials, can process aluminum, copper, A3 steel, 45 steel, cast iron, pig iron, Q235, S136, mold steel, 718H,40Cr, stainless steel and other materials.

Item Included(056222)
Tapping machine *1 Support bar *1 Tap chuck *8
Collet wrench *1 Fixing screw *4 English manual *1
