Item number # 110501

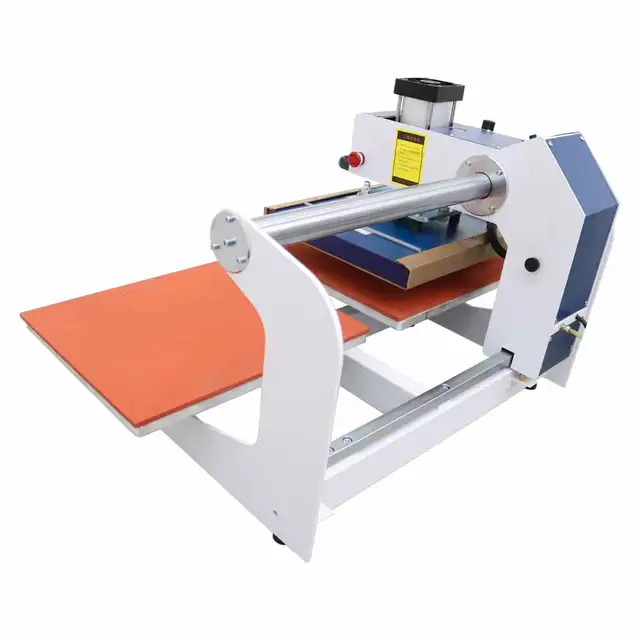

This Pneumatic Double Table Heat press machine is featured by its two working tables and air automatic working system.
The upper heating board moves automatically and easily. It is very efficient for advertising use and industry use. Heating panel and working tables are specially processed and make the machine works well and tranfer images clearly.
It's suitable for sublimation and heat transfer printing work.
With CE certification .
-
Parameters:
Items: Double-position Heat Transfer Printing Machine(Pneumatic)
Model: DJ-H402
Printing Area(mm):400*500mm(15.7*19.7inch)
Temp.range:0-399centigrade
Time Range (s) :0-99
Votage/Power:110V/3KW
N.W.(kgs) : 84.7(187lb)
Machine Dimensions(mm) : 1100 x 660 x 600(43.3 x 26 x 23.6inch)
Packing Size (mm) : 1205 x 750 x 820(47.4 x 29.5 x 32.3inch)

Feature
1.CE approved heat press machine. high quality as well as good price, good after-sale service.
2.The machine adopted automatic pneumatic fitting pressure, it can transfer the lower pressure to higher
compress pressure. (pressure up to 8kg/cm2).
3.It contains two locations, paralleled moving the head up left and right, much more convenient and faster,
high efficiency ,save labor and time at one time.
4.This machine adopts thicken heat plate to ensure the temperature more equality and steady as to
improve the transfer quality and avoids tolerance. high accuracy, perfect heat press effect.
5.Upgraded lower platen allows room for T-shirts to be easily, placed into and removed from machine,
10cm adjustable range, produce wider products.
6.The pressure can be adjusted according to the thickness of the material you're transfering to. Including
print the ready made clothes and cut pieces ,it can be widely used in the factory mass-production and
personalized pyrograph of retail shops.

Operation procedures
Please note: Users should operate the machine with ground wire connected for safety!
1.Plug in, turn on the power switch, the power indicator lightened.
2.Set the thermostat to the temperature needed (Normally 120-200centigrade),set the timer to the needed. (Normally 5-20Second),then wait for until the temperature has reached the preset temperature.
3.Put the cloth on the silicone pad of the working table, cover the printing paper (please note the right surface of the paper).
4.Press the start switch, you will see the machine is working and the time is counting down .
5.When the time come down to over, the heating plate will raise automatically. you will find the beautiful and attractive effect!
6.If it is cold-ripping of the transfer paper, please use blackboard wiper to rub against the whole transfer paper, wait for 5-10 seconds, then rip off the transfer paper. If it is the hot-ripping of the transfer paper, you can rip off immediately after printing.
Please note:successful print requires right time,temperature and pressure,the thickness of the
clothes material ,even thetype of printing paper,all will affect the performance of printing .Any
kind of sublimation paper need test before mass production.
7.Connect an air compressor with a capacity of 30L or more to use.

Item included:
1set 110V 16x20" Upper Glide Automatic Pneumatic Double Station Heat Press Machine (110501)

Notice
1.Limited stock, please purchase ASAP if you want it.
2.Before pickup, please call us to make sure.
3.The price will be adjusted when there's large fluctuations in exchange rates and raw material costs.
4.Advertising price does not include the tax.
