Item Number: 017001

Constructed with corrosion-resistant, gold-plated connectors for optimal signal clarity and shielding to minimize interference.
Press down the foot pedal to start your machine and release it to stop Installs easily with textured surface to prevent slipping during operation
Lens for 1064nm wavelength lasers offers up to 97% transmittance with minimal distortion and antireflective coatings that ensure both excellent engraving and a long service life.
Lift column,500mm height,Metal body, screw lifting device, sturdy body and high precision;Triangular support structure, can bear more load of light path.
Manual lifting,Flexible and changeable to meet your various needs.
Electric lift,More convenient to control the rise and fall of larger operations.

The optical fiber laser is employed for laser output, and super high-speed scanning system is employed to achieve marking. The optical fiber laser markers feature high efficiency in electrical/optical conversion, and wind cooling is employed. The whole system is characterized by small size, high beam output quality, high reliability, super-long service life and energy saving.
The markers are used for fields with higher requirements for depth, smoothness and precision, The markers are able to engrave beautiful images on metallic .
The machine is mainly applied to the higher precision marking of objects such as components of automobile and motorcycle, astronautic apparatuses, chips of integrate circuit electronics, packages of food, drink and cigarettes, keys of mobile phone, batteries, electric apparatuses, fittings and peripheral equipments of computer, ironware tools, stainless steel wares, electric products, communication products, medical devices, industrial bearings, garment .It can mark both words and graphs.

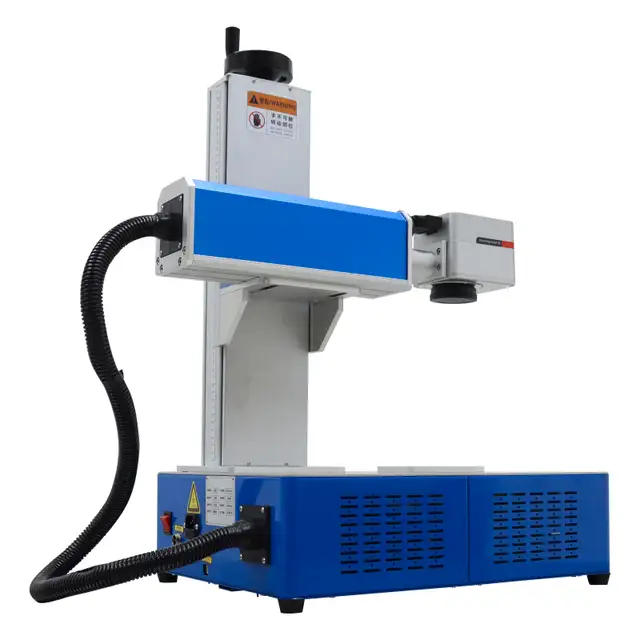

30W Fiber-optic laser marker, very flexible and is easily integrated into industrial production processing. it can operate laser directly by controlling interface (USB) , no supplies, and products' depreciation costs are greatly reduced. By comparison it has performances including high efficiency, long life and maintenance-free.

Specifications
Product Dimensions :19.7*14.6*31inch (500*370*780mm)
Product Weight : 24.9 kg
Wavelength : 1064nm
Laser Power : 30W
Power regulation range：10-100%
Pulse Width : 100 ns
Rated voltage : 110V
Frequency≤50KHz
Engraving Area : 5.9 x 5.9 in.（150x150mm）
Focal length :183mm
Marking Linear Speed : ≤7000mm/s
Marking Depth : ≤0.2mm
Compatible Operating Systems : Windows / macOS/Android
Software : iMark
Laser Type : Pulse or Continuous
Color Engraving : NO
Graphic format supported : PLT,PCX,DXF,BMP,AI Engraving accuracy : 0.01mm
Positioning Accuracy : ±0.1 μm
Pulse Repetition Frequency :20-60KHz
Expected Service Life : 100,000 hr.
Cooling Type : Air Cooling
Focus mode : Manual focus
Lift Mode：Manual Lift/Electric lift
Rotation Axis Function : NO
Foot Pedal Function : external foot pedal
Materials Suitable for Engraving : Brass，Hard Plastic，Titanium，Brick，Marble，Gold，Carbide，Silver，Tungsten，Granite，Steel，etc
Data Transmission : USB Cable/WiFi
Package Dimension :24.4*22.2*21.5 inch(645*565*545mm)
Gross Weight :29.65 kg

Item inclued:
30W Fiber Optic Marking / Marker / Engraving Laser *1

Notice
1.Limited stock, please purchase ASAP if you want it.
2.Before pickup, please call us to make sure.
3.The price will be adjusted when there's large fluctuations in exchange rates and raw material costs.
4.Advertising price does not include the tax.
-
