Item number: 028209
-
Product Overview

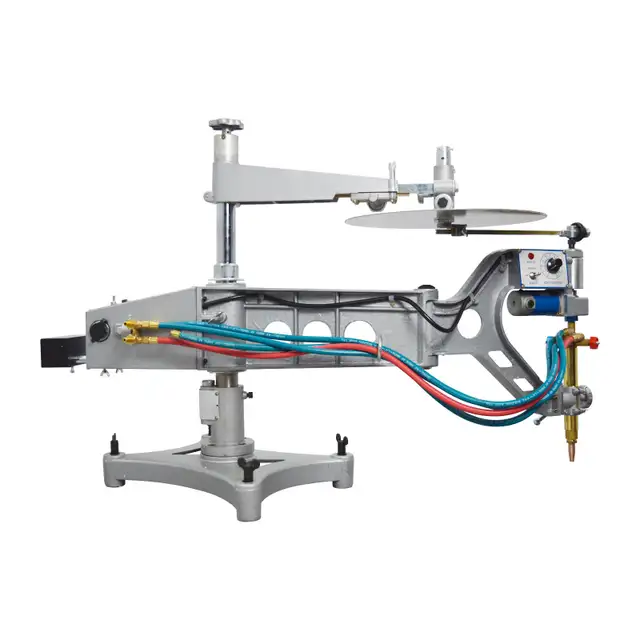

This profiling gas cutter is an efficient and economical equipment for copying metal shapes. It is well designed made of grade “A” cast alloy. It can cut repeatedly circles and many other shapes according to the sample plate. The accuracy of the cutting surface is good and the quality is high. The body is small and make it portable for its use indoors and also outdoors.

Product Parameters
Model: CG2-150
Voltage: AC110V/60Hz
Circle cutting range(diameter): 1.97"-23.62"(50mm-600mm)
Cutting speed: 50-750mm/min
Cutting thickness: 0.2"-3.9"(5mm-100mm)
Maximum cutting straight length: 47.2"(1200mm)
Square cutting range: 1.97"*1.97"-19.68"*19.68"(50mm*50mm-500mm*500mm)
Maximum cut rectangle: 35.4"*15.7"(900mm*400mm)/29.5"*17.7"(750mm*450mm)
Cutting Torch Specifications: G03#1 *1/G03#2 *1/G03#3 *1
Cutting precision: Ovality:≤0.06"(1.5mm)
Square: 0.04 "( / - 1 mm)
Manner of packing: New wooden cases
Package size: 32.7"*16.5"*31.1"(79cm*42cm*83cm)
Net weight/Gross weight: 92.6LB(42kg)/132.3LB(60kg)
Note:Welding hose to connect to the machine not included.

Cutting Thickness
Propane Cutting Thickness(unit:mm) Acetylene Cutting Thickness(unit:mm)
G03#00 4-9 G02#00 5-10
G03#0 5-10 G02#0 10-20
G03#1 10-20 G02#1 20-30
G03#2 20-35 G02#2 30-50
G03#3 35-60 G02#3 50-70
G03#4 60-90 G02#4 70-90
G03#5 90-130 G02#5 90-120
G03#6 130-180 G02#6 120-160
G03#7 180-250 G02#7 160-200
G03#8 250-300 G02#8 200-270
G03#9 300-380 G02#9 270-350
G03#10 380-450 G02#10 350-400
Note:Under normal circumstances, the cutting thickness of 5-100mm can meet the normal demand, more than 100mm on the gas pressure requirements will be improved !!!

Product Features & Advantages
-Balance Block
Equipped with a balance block at the rear of the machine to ensure a stable center of gravity and higher cutting accuracy when the machine is working.
-Sample Rack
The free-adjusting sample rack is used to fix the template, and the upper and lower heights of the template can also be adjusted vertically, which is flexible and convenient.
-Base Adjustment
The height of the four corners of the base can be adjusted according to the actual situation of the ground to make it reach a level and stable state to ensure the cutting accuracy.
-Gas Distributor
The gas distributor is made of high-quality alloy, with good sealing performance, safe and reliable. The intake volume can be precisely controlled by adjusting three valves.
-Cutting Head
Cutting torch is made of pure copper material, high temperature resistant, The cutting height can be fine-turned according to different conditions, the torch replacement is simple.
-Control Panel
The control panel contains three functions: forward and reverse switch, indicator light, and speed control knob; the operation is simple and easy to understand.



- The CG2-150 profile cutting machine body is precision die-cast from aluminum ingots.
- According to the sample plate, can cut any shape, any size in large quantity in the same shape in very short span of time.
- As the base arm moves along the edge plate of the template, the torch can correctly cut the same shape as the template.
- The speed can be adjusted uniformly within the specified range without changing the performance of the motor, and the speed control is also stable.
- Can be used in boiler, shipyard, infrastructure industries, metal industries, metallurgy and small workshop with equal ease.



Item Included: 028209
Gas Cutting Machine *1 Cutting torch *3 English manual *1
