Item number: 160133
-
The machine is beautiful, smart, and has a high qualification rate. It is suitable for labeling  in cosmetics, beverages, medicine, food, general merchandise and other industries.
The design of the machine is novel and unique, and the operation and adjustment are very convenient. The operator only needs to place the bottle on the conveyor belt, when the bottle moves forward, the cursor will automatically label and mark the bottle after detecting it.
It can be used for both stand-alone production and online production.

Product parameter
Voltage: 110V/60Hz
Material: The surface is stainless steel
Conveyor width: 5.9in(15cm)
Conveyor belt length: 45.86IN(116.5CM)
Label inner diameter: 2.99in(7.6cm)
Label outer diameter: 9.8in(25cm)
Label out: Left output
Output speed:
20-200PCS/min (Depending on the bottle size and label length)
Suitable bottle diameter: 1.57-3.9in(4-10cm)
Label height: 0.59-5.9in(1.5-15cm)
Label length: 0.98-11.8in(2.5-30cm)
Precision: ±0.039in (1mm)
Package: Export wooden case

Features:
1.Multi-rod spiral: positioning prevent deviation and makes the sheet more accuarate.
2.Rubbing type label: add rolling-type labeling to effectively solve the bubbles during product labeling, and labeling is flat without wrinkles.
3.Front and rear hand wheels of wheel auxiliary pressing plate
Clockwise adjustment can make the wheel anxiliary pressure plate move forward.
4.Wheel auxiliary pressure plate lifing hanwheel
Adjust the hand wheel clockwise to raise the wheel auxiliary pressure plate
5.The label object is sensitive to inspection, and the labeling efficiency is greatly improved.
6.The machine is equipped with an intelligent touch control panel, which is more convenient to operate.
7.Photoeletric detection of labels is conducted, and the label will be released immediately when the bottle is detected to pass

Product safety precautions:
To ensure safe production, please read the following precautions carefully:
1. Use the power supply that meets the requirements of the machine.
2. After turning off the power switch, there is still voltage in some circuits in the electrical control of the machine. When servicing the control circuit, be sure to unplug the power cord.
3. Do not touch the print grain holder with your hands during work to prevent scalding and pay attention to personal safety.
4. When the machine has problems, press the emergency stop button directly to suspend all work.

Advantages
1. The machine is efficient and convenient to use;
2. The machine automatically labels, saving manpower and material resources;
3. This machine has wide applicability and stable performance;
4. This machine is equipped with an intelligent touch control screen, which is more convenient to set data parameters;
5. This machine can meet the requirements of full-circle labeling or semi-circle labeling of round bottles. The labeling switching between bottles is easy , and the labeling is flat without wrinkles to improve the packaging quality.
6.This machine can be used with a capping machine and a bottle sorting machine.
7.The components of each adjustment position are precisely matched, and the height, width and width of the components can be easily adjusted without the use of professional tools. The machine operation is easy

Item include:160133

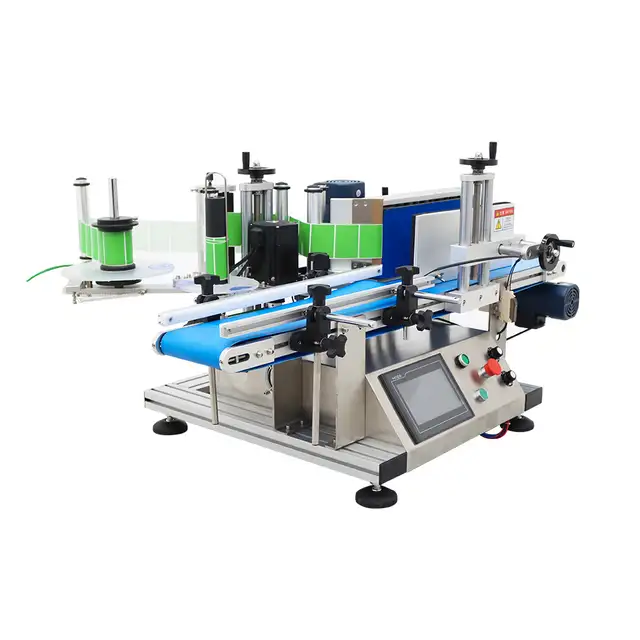

LT-150 Automatic Desktop Conveyor Round Bottle High Speed Labeling Machine*1
