Item number: 230143
-
The conveyor is made of stainless steel body and PVC belt, easy to install, easy to use, belt with Italian high anti-static PVC industry, has the high anti-static ability. The machine speed is adjustable from 3-15 m/min.High machine stability, can be used repeatedly for a long time.

90° Change direction conveyor, can be flexible to change the direction of transportation, suitable for small space, more obstacles in the production site. The equipment can be widely used in mining, metallurgy, building materials, chemical, electric power, food processing and other industrial fields.

Specification
Belt Width:11.8inch(30cm)
Highly: 32.7 (83 cm)
Speed:3-15 m/min adjustable
Motor Power:400W
Converter power:750W
Input Voltage:110V/60Hz
Material:stainless steel PVC
Usage:Packing,shipping etc.
Net Weight: 151.8LB(69kg)
Gross Weight:227.7LB(103.5kg)
Packing Size:51.6*27.2*37.8 "(131*69*96cm)

Details

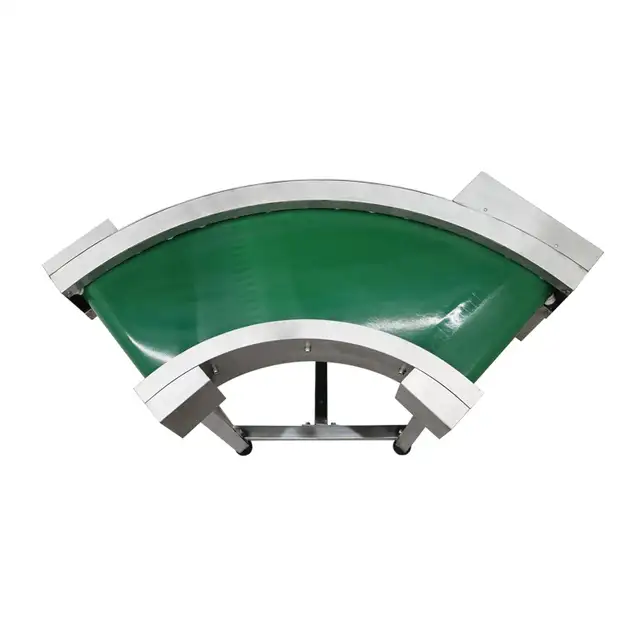

1.90°Change Direction Conveyor
This machine can be flexible to change the direction of transportation, suitable for small space, more obstacles in the production site.

2.Controller
The control box is equipped with a 750W variable frequency governor, and the machine speed is adjustable from 3 to 15 meters per minute. The air switch has functions such as short circuit protection, overload protection, and undervoltage protection, which protect the entire machine's circuit.

3.PVC Belt
PVC conveyor belt is wear-resistant, elastic and not easy to deform.

4.Transition Roller
Stainless steel transition rollers are installed on both sides of the belt, making it smoother for items to move up and down the conveyor.

5.Belt Fixing Pulley
The belt is equipped with fixed pulleys both above and below, which can ensure that the belt does not shift during operation and runs smoother.

6.Rubber Feet
Rubber feet, wear-resistant and anti slip, with stable support. When the ground is uneven, the machine can be adjusted to level by adjusting the bolts on the feet.

Installation steps
1. Turn the table upside down and install the five legs on the table in turn. (Note that the leg with the motor is mounted on the side with the gear)
2. Install the beams between the 4 support legs.
3.Put the machine forward and install the motor chain gear protection cover.
4.Connect the motor to the control cabinet.

Item Included: 230143
1*90 °Change Direction PVC Conveyor

Notice
1.Limited stock, please purchase ASAP if you want it.
2.Before pickup, please call us to make sure.
3.The price will be adjusted when there's large fluctuations in exchange rates and raw material costs.
4.Advertising price does not include the tax.
