Item number: 027304
-
Description:
This machine is mainly used for drilling processing of
cabinets, wardrobes, door processing and manufacturing, and
can adjust the drilling position vertically and horizontally,
which is convenient and fast, and the switch control is
accurate and in place.

This single head woodworking hinge drilling machine features
elegant appearance, humanized design, simple and convenient
operation, flexible, stable and reliable drilling operation,
high efficiency.

The machine has no tool calibration device, which can ensure
the need of drilling depth. Three holes in the vertical
position can be processed at one time, including one big hole
for hinge head hole and two for assembly screw hole. Suitable
for drilling various profiles.

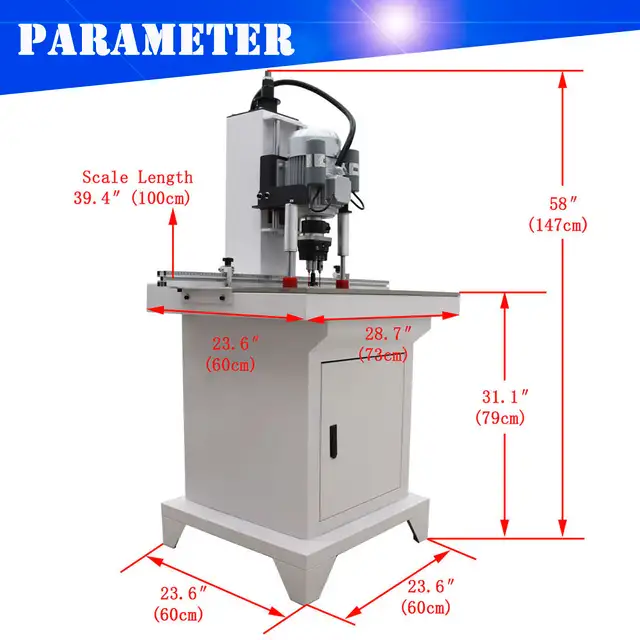

Parameters:
Voltage: 110V
Power: 1500W
Punching Depth: 0-50mm
Speed: 2880r/min
Drill: φ35mm*1,φ8mm*2
Combined Drill Model: 45-9.5
Scale: 39.4 "(100cm)
Air Pressure: 0.6-0.8MPA
Net Weight: 140.8LBS (64kg)
Gross Weight: 233.2LBS (106kg)
Package Size: 31.89 "* 28.54" * 65.75 "(72.5 * 81 * 167 cm)

Details:
1.Workbench
Thickened and enlarged table, easy to use, ensure success rate.
2.Combined Drill
High quality combination drill, drill bit can be changed at any time.
3.Rubber Pressure Plate
Air spring rubber compression device to easily secure the board.
4.Scale
The scale control is accurate to reduce the error rate,
5.Positioning Stop
Adjust the position of the positioning battle at will according to the scale as needed.
6.Control Panel
Button operation, simple and convenient, with emergency stop switch, more safe.

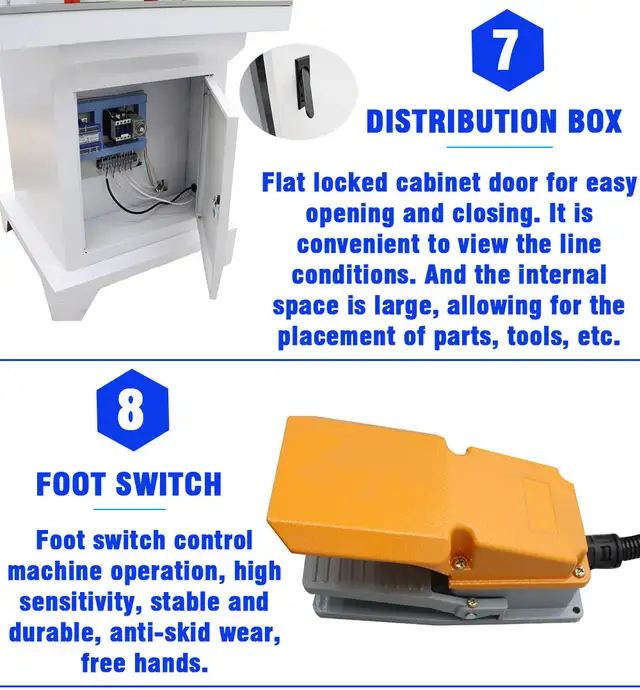

7.Distribution Box
Flat locked cabinet door for easy opening and closing, It is convenient to view the line conditions. And the internal space is large, allowing for the placement of parts, tools,etc.
8.Foot Switch
Foot switch control machine operation, high sensitivity,stable and durable, anti-skid wear,free hands.
9.Thickened Base
The thickened base design makes the machine more stable and firm.
10.Hole Depth Adjustment
The punching depth is adjustable, and the total stroke is 2.7'' (7cm) adjustable.

Advantage:
1.Thickened and enlarged table, easy to use, ensure success
rate.

2.High quality combination drill, drill bit can be changed at
any time.


3.Air spring rubber compression device to easily secure the
board.


4.The scale control is accurate to reduce the error rate.
5.Adjust the position of the positioning baffle at will
according to the scale as needed.


6.Button operation, simple and convenient, with emergency stop
switch, more safe.


7.Flat locked cabinet door for easy opening and closing. It is
convenient to view the line conditions. And the internal space
is large, allowing for the placement of parts, tools, etc.


8.Foot switch control machine operation, high sensitivity,
stable and durable, anti-skid wear, free hands.


9.The punching depth is adjustable, and the total stroke is
2.7 "(7cm) adjustable.


Precautions For Use:
1.Before operation, check whether the power cable is properly
connected, whether the protective device and the pressing device
are complete, and whether the components are normal.


2.The operating position should be bright and without shadow.


3.The drill should be centered, balanced and sharp.


4.This machine is mainly used for wood punching processing
(thin aluminum can also be), and the selection of materials
can not have nails, screws and other tools damaged or blunt
foreign bodies.


5.Hands should not touch the rotating parts of the machine
tool during operation, and the wood chips should not be
removed during operation. The power supply must be cut off
before adjusting or removing the wood chips, and can only be
carried out after the machine tool stops working.


6.Stop the machine immediately if anything abnormal is found.

NOTE: Confirm drill hole size before purchase.
Attention: Two colors of rubber pressure plates are randomly shipped.

Item Number: 027304
110V Pneumatic Hinge Boring Insertion Machine
