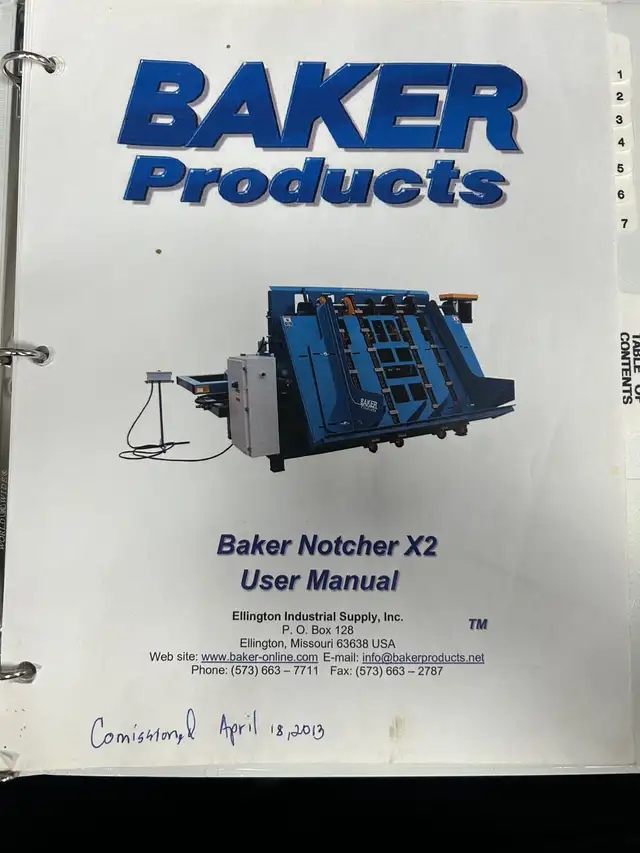

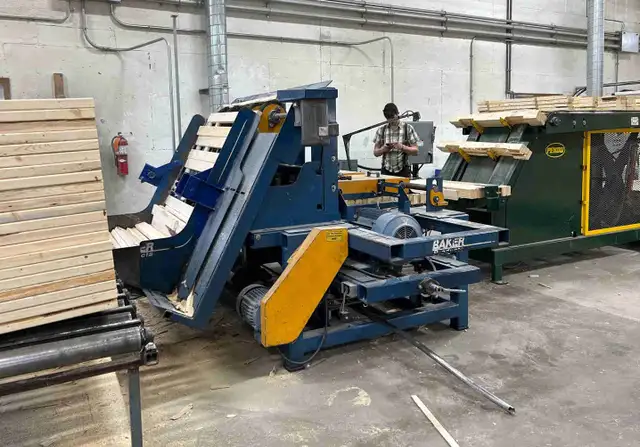

Baker notcher x2 still in operation looking to sell notcher and stacker and take away conveyor the feed chain are vfd controlled just changed the notcher heads and main bearings on both heads 10 inch duct attachment needed for operation
600 volts 3 phase

Stacker pendu
1 STACKER, PENDU MODEL 4600N
,
2 1
STACKER TAKE AWAY
12' Long take away
Drive: Hydraulic motor
Two strand #2080 deck chain
36" center to center is standard
STD working height: 13"
Construction: Plated between chains Control box with all required components

DESCRIPTION

Up to 4000 stringers per hour
Up to 48" wide X 50" high X 96" long 24" to 96" depending on board thickness
SALES AGREEMENT 15732-1
February 20, 2020
WWW.PENDU.COM
Drawing # SK-022020-4A
Stack rate:
Stack size:
Stacks length:
Stacks boards and cants is sizes from 1" X 2 1/2" to 3" X 4 1/2" Hydraulic powered motors and cylinders
Side safety shields
Manual over ride control panel
Automatic or manual mode
Set of 2 outrigger rails for notched stringers Work height:


1 AUXILIARY HYDRAULIC POWER UNIT, MODEL 1015

Closed center pressure compensated
15 Gallon per minute pump
15 HP Electric motor
60 Gallon tank
60 Gallon of multi viscosity oil
Thermostat, heater & cooler - requires 220V/1PH/60HZ 1 1/4” Connecting hose kit
Check valve
Dump valve
OPTIONAL EQUIPMENT
Combination Motor Starter Breaker And 40 Amp Disconnect With Transformer 575 Volt, 60 Hertz, 3 Phase
